Explosion-Proof Electric Heater
Explosion-Proof Electric Heater
Home 万森 · 产品 Explosion-Proof Electric Heater RTO high temperature electric heater

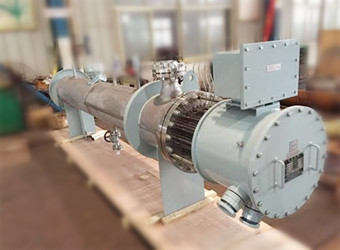

RTO high temperature electric heater
Functional Characteristics Specification Parameter
  • It has a better service life than ordinary carbon steel electric heaters and has lower maintenance requirements during use.
    Durable in strict compliance with the rules of use.
  • Rated voltage：220V、380V
    Explosion-proof grade：ExdⅡBT1-4
    Temperature control method：Automatic temperature control
    Temperature control accuracy：±1℃

The RTO high temperature electric heater is an electric heating device that mainly heats a high temperature gas stream. The heating element of the electric heater is a stainless steel electric heating tube, and a plurality of baffles (baffles) are arranged in the inner cavity of the heater to guide the gas flow direction, prolong the residence time of the gas in the inner cavity, thereby heating the gas sufficiently to make the gas Uniform heating to improve heat exchange efficiency. The heating element of the electric heater is a stainless steel heating tube which is filled with a heating wire in a seamless steel pipe, and the gap portion is filled with a magnesium oxide powder shrink tube having good thermal conductivity and insulation. When the current passes through the high temperature resistance wire, the generated heat is diffused to the surface of the heating tube by the crystalline magnesium oxide powder, and then transferred to the heated gas to achieve the purpose of heating.
